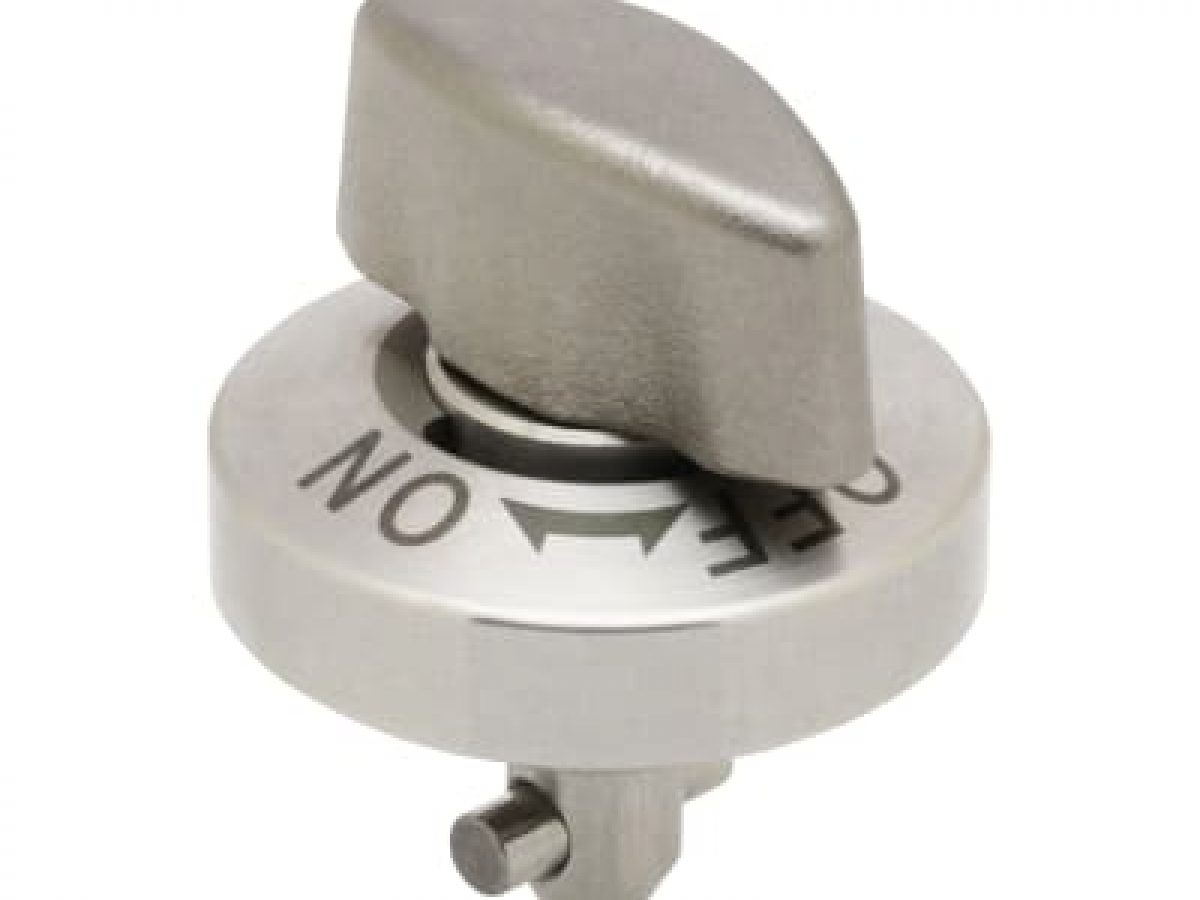

Kẹp xoay 1 phần 4 IMAO QCTH0525-10S

Material/ Technical Info
Body: 303 Stainless Steel
shank: S45C steel Electroless nickel plated
Knob:SCS13 Stainless steel
Spring: Equivalent SWOSC-V
Pin: SUS304 Stainless steel
Weight: 40 g
Heatresistant temperature: 180 degrees Celsius
Shear strength: 1800 N
Tensile strength: 1200 N
Clamping force: 60 N
Measurements
Plate thickness: 3-10 mm
D (- 0,08 / – 0,04): 5
D1 (h9): 14
D2: 25
D3: 20
DP: 21
L: 15,5
H: 19
H: 16,5
M: M2x0,4 – 3 mm deep
Anemo Engineering is offering Quarter Turn Clamp as factory new and is furnished with 3 socket head cap screws of M2x0,4 – 5 mm.
Shear and tensile strength is allowable load and the fastener could break when it receives bigger load.
Proper receptacles for QCTH0525-10S
