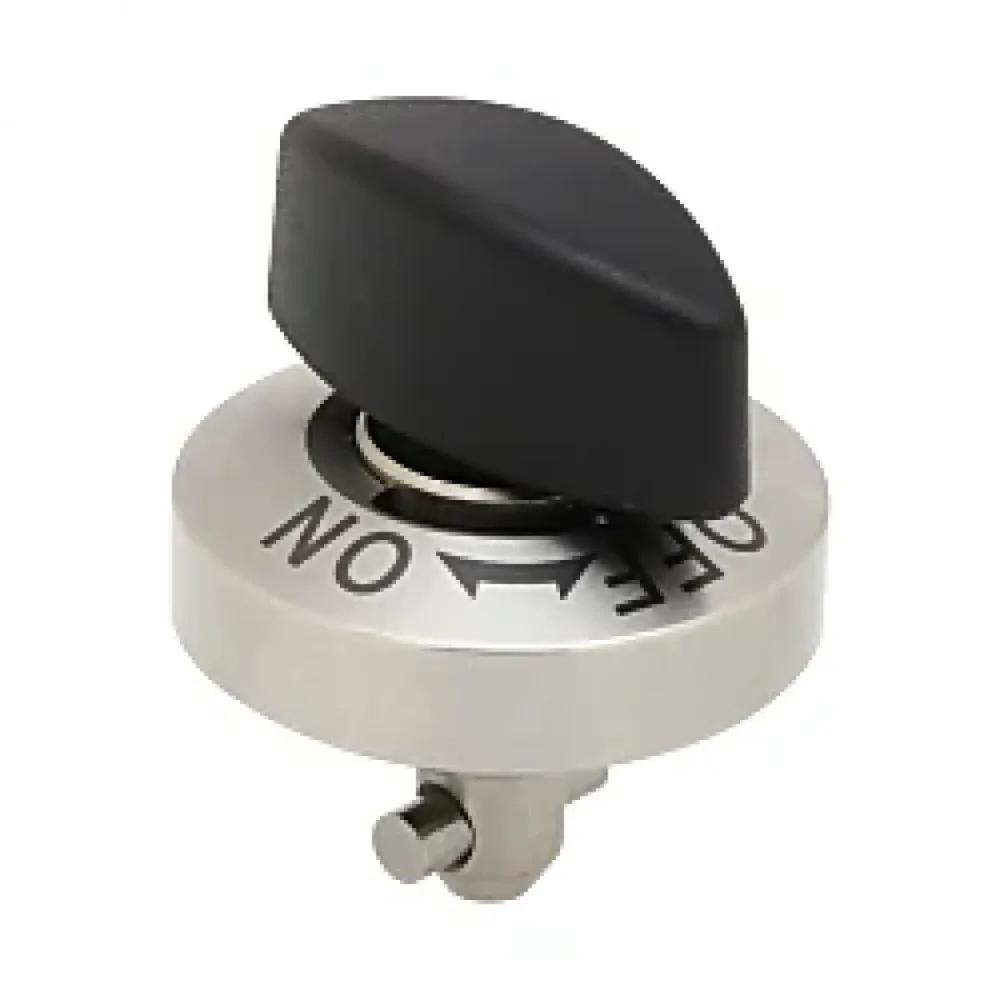

Kẹp xoay 1 phần 4 IMAO QCTH0525-10

Material/ Technical Info
Body: 303 Stainless Steel
shank: S45C steel Electroless nickel plated
Knob: Polyamide black
Spring: Equivalent SWOSC-V
Pin: SUS304 Stainless steel
Weight: 35 g
Heat resistant temperature: 130 degrees Celsius
Shear strength: 1800 N
Tensile strength: 1200 N
Clamping force: 60 N
Measurements
Plate thickness: 3-10 mm
D (- 0,08 / – 0,04): 5
D1 (h9): 14
D2: 25
D3: 20
DP: 21
L: 15,5
H: 19
H: 16,5
M: M2x0,4 – 3 mm deep
Anemo Engineering is offering Quarter Turn Clamp as factory new.
Shear and tensile strength is allowable load and the fastener could break when it receives bigger load
Proper receptacles for QCTH0525-10
