Kẹp IMAO QCIC05M10-2P

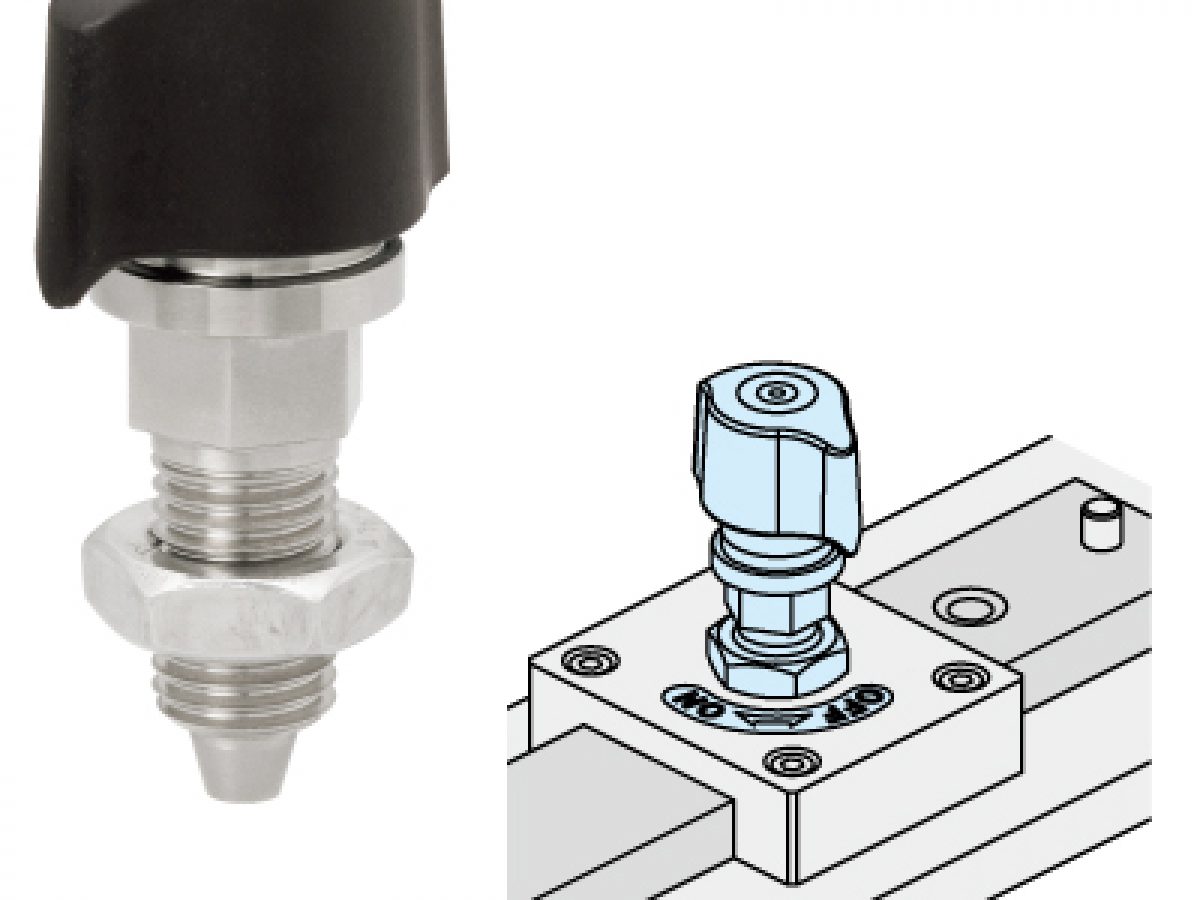

This Part QCIC05M10-2P is a Indexing Clamp.
Material/ Technical Info
Body: SCM440 Steel Electroless Nickel Plated
Tapered Pin: SCM435 Steel Electroless Nickel Plated
Indicator: A5056 Aluminium Alloy Anodized Red
Knob: Polyamide Black
Weight: 45 g
Heatresistant temperature: 80 degrees Celsius
Allowable Load: 900 N
Clamping Force: 140 N
Measurements
Plate Thickness: 8- 10
d: 3.3
D: 26
H: 44
H1: 48
d1: 5
S: 4.2
L: 15
B: 2
M: M10x1 Fine thread
