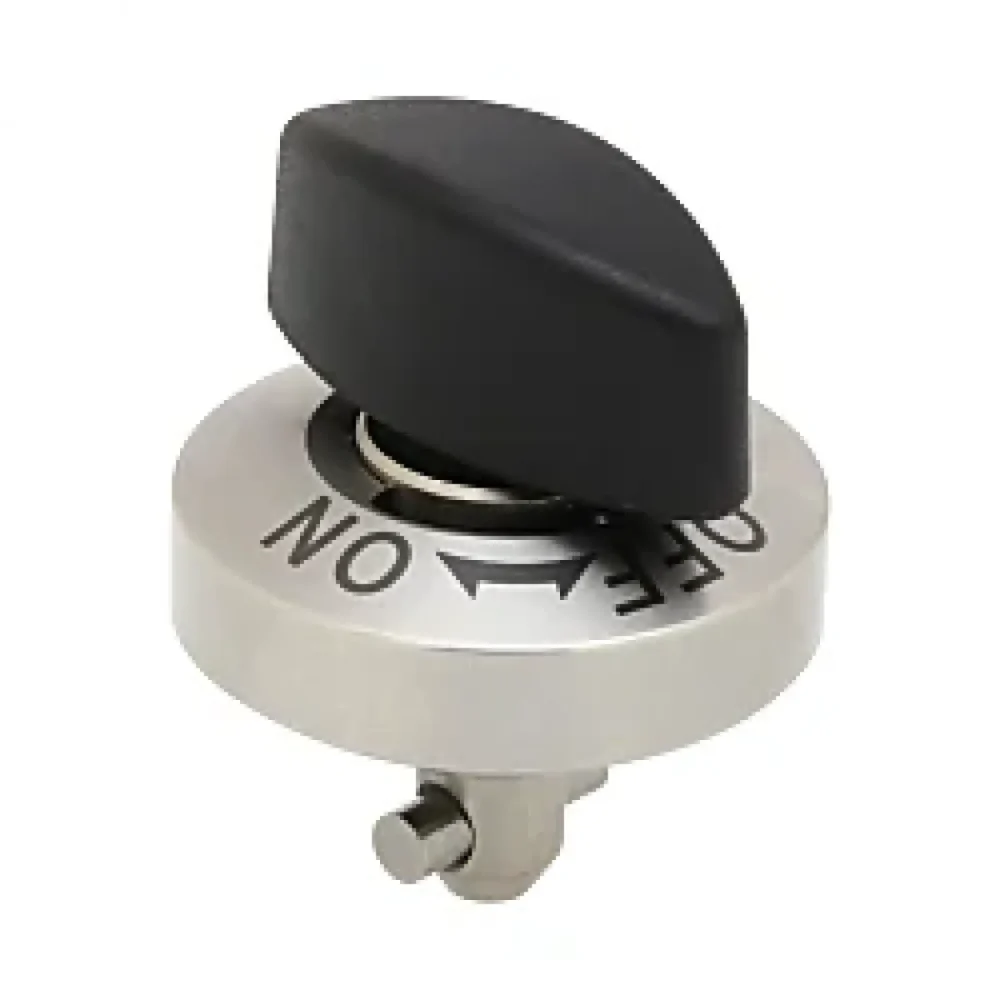

Kẹp xoay 1 phần 4 IMAO QCTH0525-10-SUS

Material/ Technical Info
Body: SUS303 Stainless Steel
shank” SUS303 stainless steel
Knob: SCS13 Stainless steel
Spring: SUS304 Stainless steel
Weight: 40 g
Heatresistant temperature: 180 degrees Celsius
Shear strength: 1800 N
Tensile strength: 1200 N
Clamping force: 90 N
Measurements
Plate thickness: 3-10 mm
D (- 0,08 / – 0,04): 8
D1 (h9): 18
D2: 34
D3: 20
DP: 28
L: 17
H: 19
H1: 10
M: M3x0,5- 4 mm deepth
Anemo Engineering is offering Quarter Turn Clamp QCTH0525-10-SUS as factory new and is furnished with 3 socket head cap screws of M2x0,4 – 5 mm.
Shear and tensile strength is allowable load and the fastener could break when it receives bigger load.
