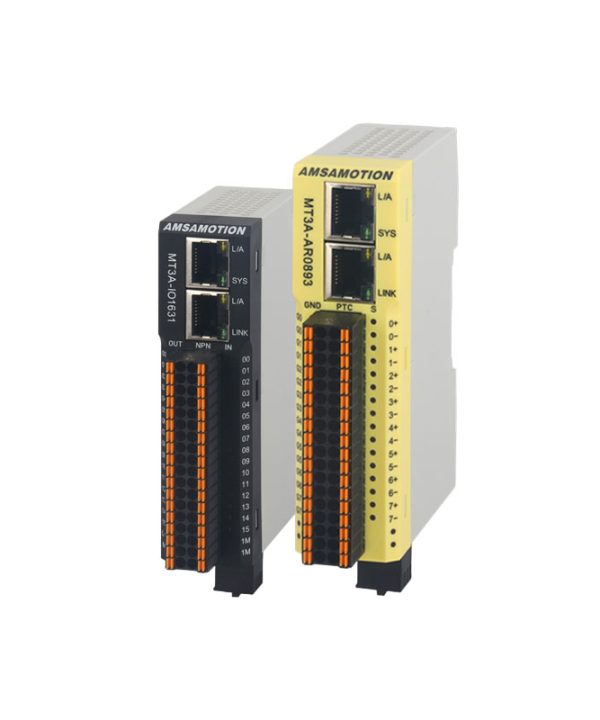

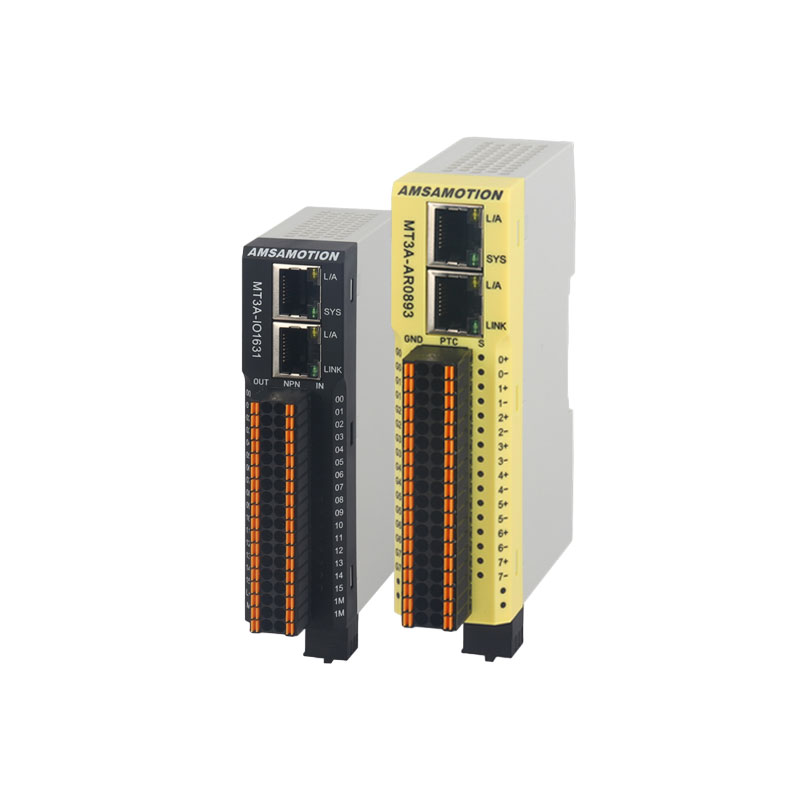

MT3A ModbusTCP IO Module

MT3A Series Module Adopts Modbus TCP Bus Interface, Built-In Switch, Double Industrial Network Ports, The Module Occupies Small Space, High Real-Time, And Its Input And Output Types Include Switch, Analog, Temperature, Weighing, Etc., Which Can Meet Various Requirements.

SKU: 3256807797346797

Category: Remote I/O Module
Tags: compact design, DIN rail mount, Ethernet module, high-speed Ethernet, industrial automation, modbus tcp, real-time applications, remote IO

Description
Additional information
Reviews (0)

Description

MT3A Modbus TCP Integrated Remote IO Communication Ethernet Collection Module

The MT3A Modbus TCP series modules are designed for industrial automation, supporting a variety of input and output types including digital, analog, temperature, and weight measurements. With a Modbus TCP interface, an integrated switch, and dual industrial Ethernet ports, this compact module (105×70×28 mm) ensures high real-time performance and minimal space usage, catering to diverse industrial requirements.

MT3A Series	MT3A-IO1631	16 DI (PNP/NPN) + 16 DO (NPN)	MT3A_ver1.0_241010.en_.pdf
	MT3A-IO1632	16 DI (PNP/NPN) + 16 DO (PNP)	–
	MT3A-OD3201	32 DO (NPN)	–
	MT3A-OD3202	32 DO (PNP)	–
	MT3A-ID3230	32 DI (PNP/NPN)	–
	MT3A-AE0830	8 AI (0–10V / 0–20mA)	–
	MT3A-AQ0810	8 AO Voltage (0–10V)	–
	MT3A-AQ0820	8 AO Current (0–20mA)	–
	MT3A-AR0893	8 RTD Inputs (PT series, CU series)	–
	MT3A-AT0892	8 TC Inputs (K, J, R, S, B, E, N)	–
	MT3A-AW0415	4-channel Weighing Input	–

Features

Compact Size: Small dimensions of 105×70×28 mm for space-saving installations.
High-Speed Industrial Ethernet: Dual 100 Mbps Ethernet ports with built-in switch functionality.
Resource Efficiency: Up to 17 modules use only one communication resource.
Flexible Connectivity: Supports both TCP…
