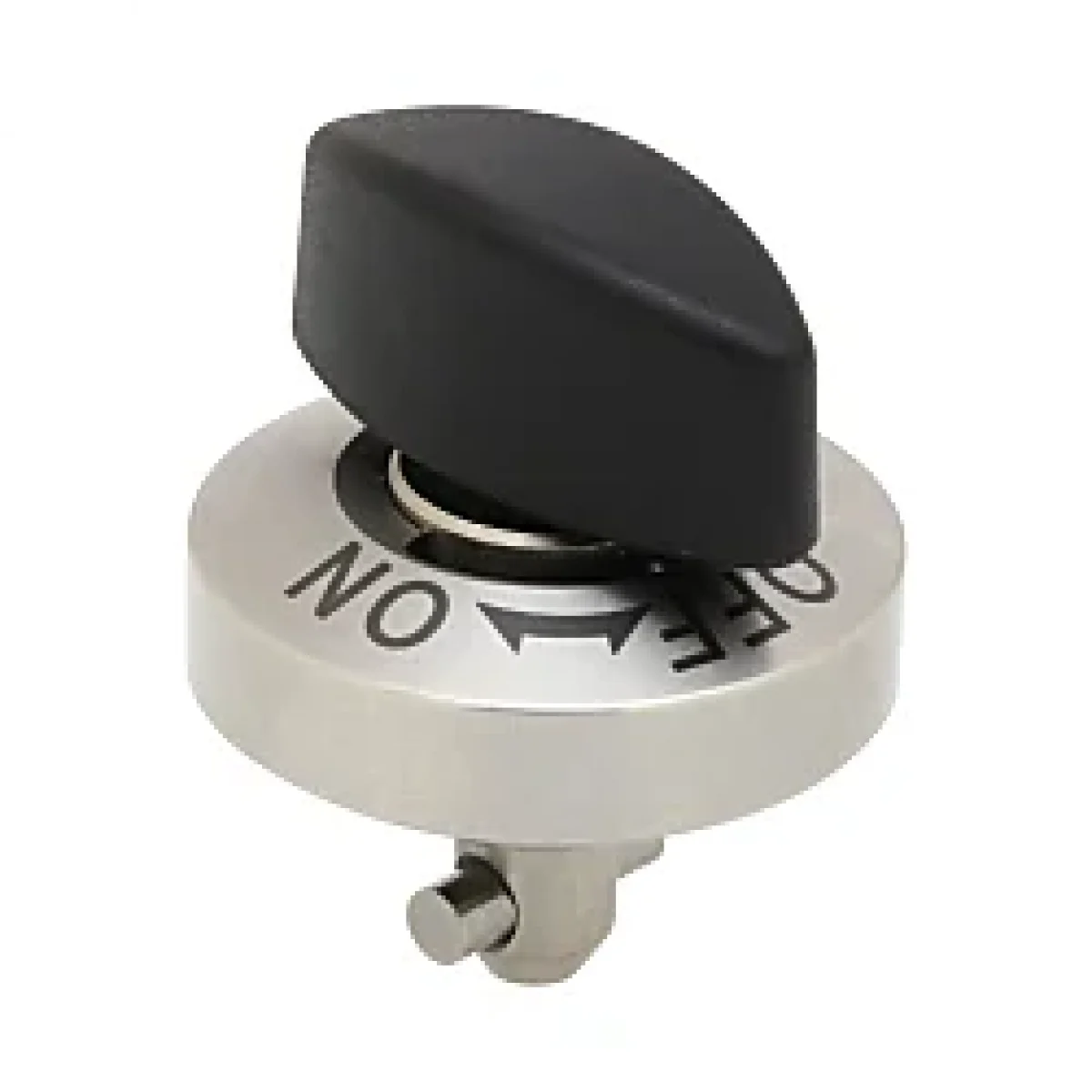

Kẹp xoay 1 phần 4 IMAO QCTH0834-20

Material/ Technical Info
Body: 303 Stainless Steel
Shank: S45C steel Electroless nickel plated
Knob: Polyamide black
Spring: Equivalent SWOSC-V
Pin: SUS304 Stainless steel
Weight: 110 g
Heatresistant temperature: 130 degrees Celsius
Shear strength: 3200 N
Tensile strength: 2600 N
Clamping force: 90 N
Measurements
Plate thickness: 12-20 mm
D (- 0,08 / – 0,04): 8
D1 (h9): 18
D2: 34
D3: 32
DP: 28
L: 23
H: 26
H1: 10
M: M3x0,5 – 4 mm deep
Anemo Engineering is offering Quarter Turn Clamp QCTH0834-20 as factory new and is furnished with 3 socket head cap screws of M3x0,5 – 6 mm.
Shear and tensile strength is allowable load and the fastener could break when it receives bigger load.
