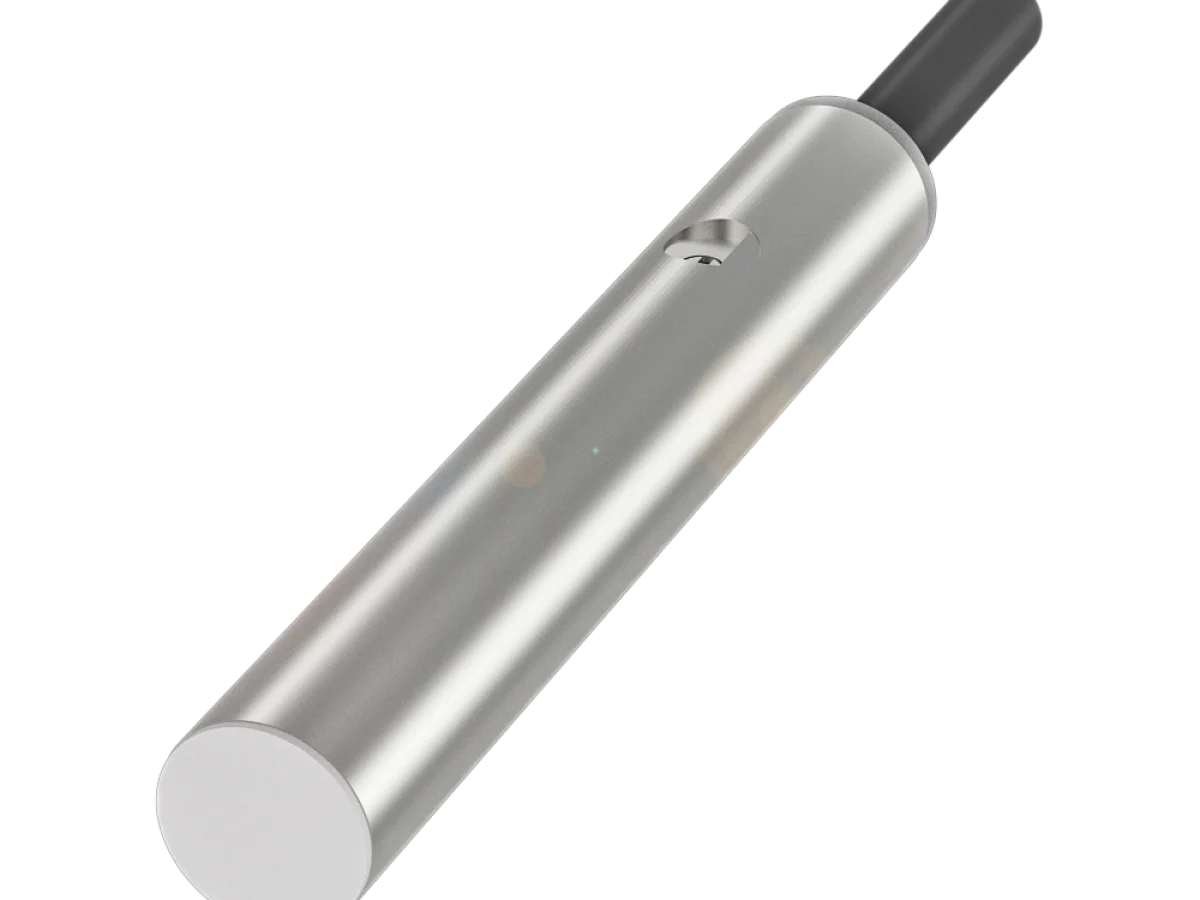

Cảm biến Balluff BCS001L (BCS G06T4E1-PSM15C-EP02)

Cảm biến Balluff BCS001L (BCS G06T4E1-PSM15C-EP02)
Dimension
Ø 6.5 x 42 mm
Series
G06
Installation
for flush mounting
Connection
Cable, 2.00 m, PUR
Switching output
PNP normally open (NO)
Switching frequency
100 Hz
Range
0.1…1.5 mm
Sensitivity
Switching distance adjustable
Housing material
1.4301 stainless steel
Material sensing surface
PTFE
Ambient temperature
-10…70 °C
Operating voltage Ub
11…30 VDC
Approval/Conformity
CE
UKCA
cULus
WEEE
IP rating
IP65
